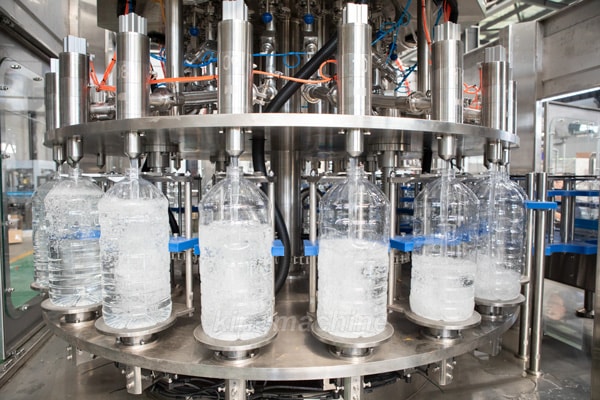

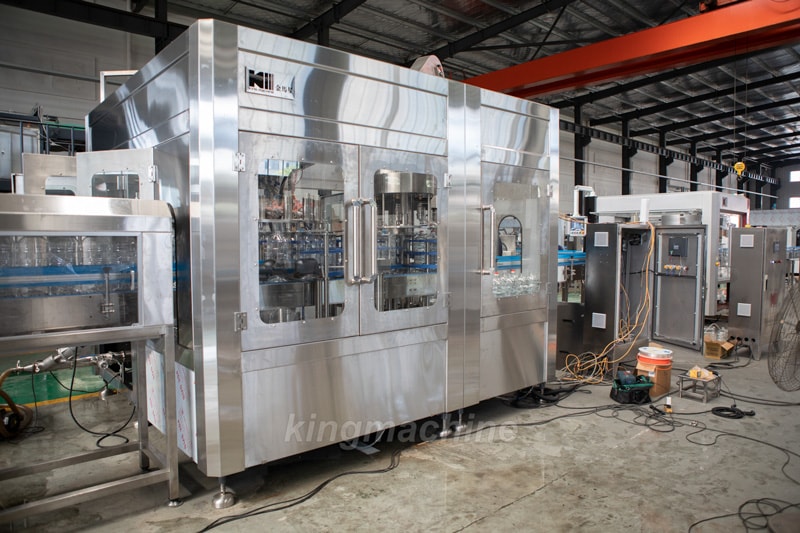

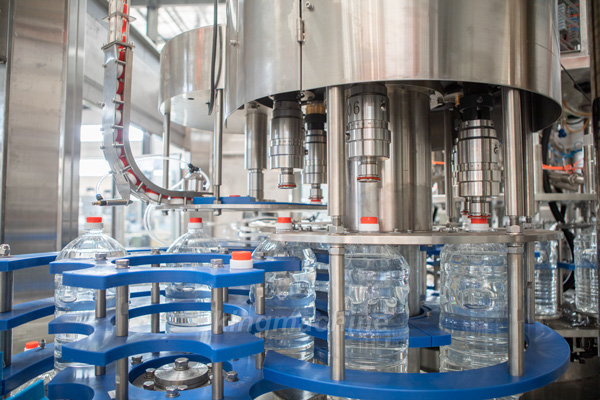

Weighing Type Filling Capping 2 In 1 Mono-bloc Cooking Oil Filling Machine

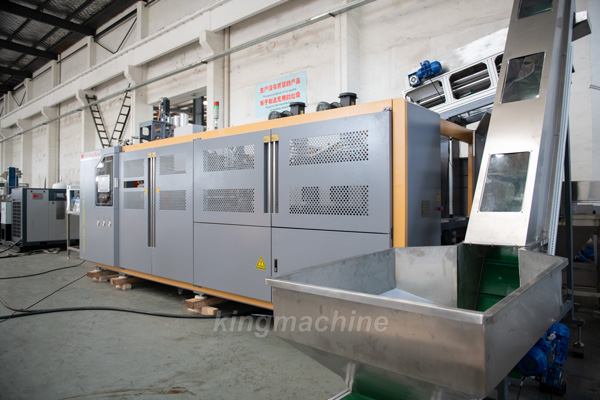

1. Excellent Mechanical Strength, impact-resisting, and non-craking.
2. Bottle mouth and thread are of precise measurement.
3. Plastic Medicine Bottle’s safe thread can be molding directly.
4.
The size and weight of the product can calculate and design clearly and
meet the requirement of the design without any deviation.
5. The surface of the bottle mouth, neck and the body is good luster and smoothness, the standard of bottle body is unity.
6. The joint seam on the bottle body is smooth, no scrap rubber.

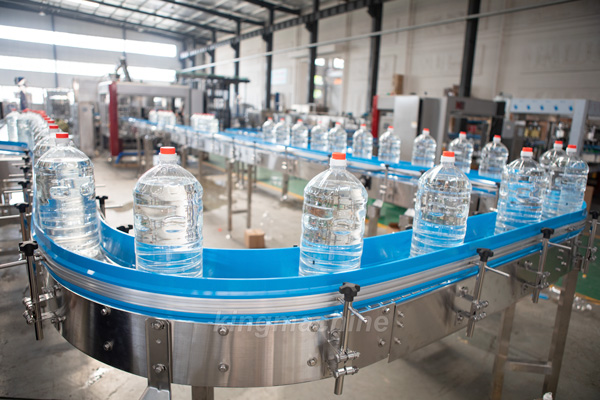

1.Stable conveying, using
synchronous chasing control between the conveying belt and engine,
making bottles in good condition in the conveying: non-falling,
non-block, non-jam.
2. Conveying belt is designed by module,
component can be interchanged easily, with compact structure, low noise,
easy assembling and maintaining, good flexibility to combine the bottle
type according to the different capacity.
3. The design of
electrical control is advanced and rational, we can design the control
method , select the electrical control component according to client’s
layout, to improve the conveying stability.

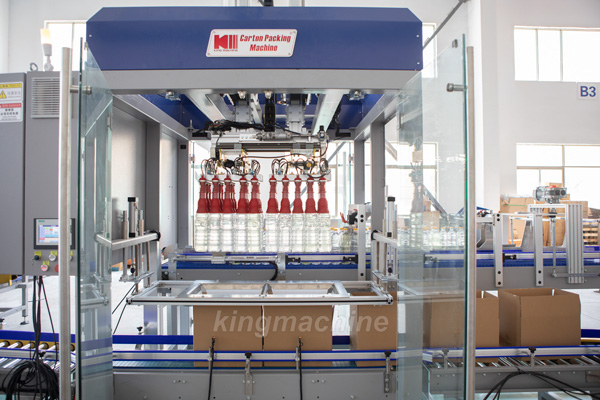

1. Equipment production capacity: 3 boxes at a time, standard output 15 boxes/minute.
2. Packing form: 12 or 24 bottles/carton.
3, applicable bottle diameter: Φ52-Φ100
4, Packing layer: one layer
5, model size: length 3340x width 1680x height 2800 (mm)
6, equipment power: 5.5Kw
7. Power supply: 380V/ 50HZ three-phase five-wire
8, pressure: 0.6 ~ 0.8Mpa (oil-free water)

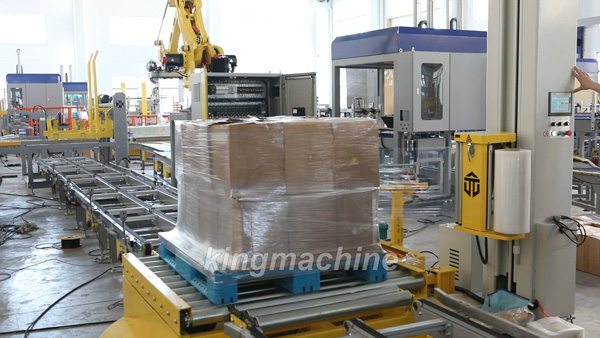

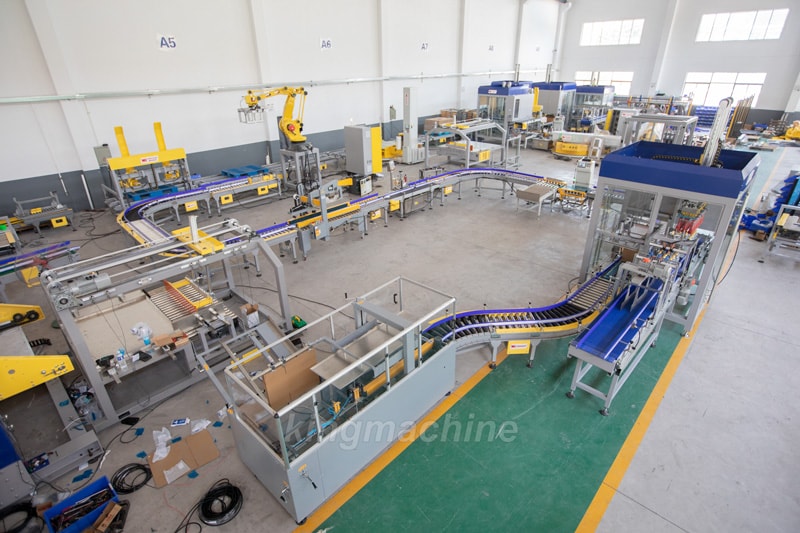

Palletizing products: film package/carton package

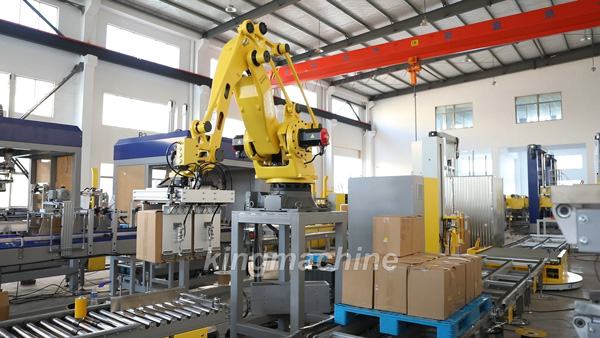

Robot: ABB (full layer palletizing)
Tray size: 1200x1100mm

Note: The palletizing speed is related to the size of the pallet and the grouping form of each layer.
