This Rotary -OPP labelling machine is high speed model, suitable for labeling OPP material labels,Linear type could reach 36000bottles per hour . There is a wide range of Labelling machines available in the market, ranging from high–production units that allow for complete automation of the print and apply process to manual devices that provide for simple label dispensing.

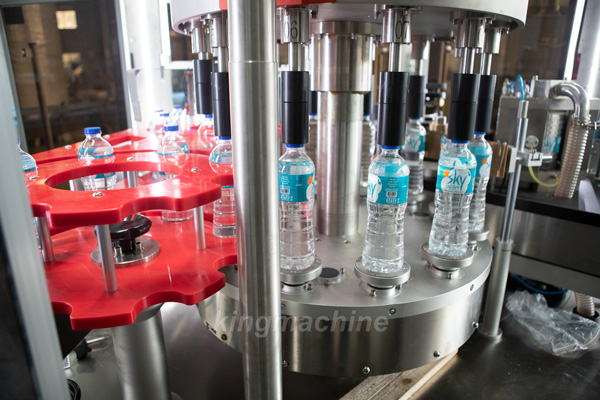

1.This OPP Hot Melt Glue Labeling Machine is rotary and continuous type. It can automatically adjust the driving of bottle inlet and outlet. The bottles driven by the conveyor are separated by the bottle separating screw according to the space of star wheel,then the star wheel transfers the bottles to the turntable.The bottles will be set by the bottle pressing structure and bottle mold base, then the bottles start to self-rotate and label.

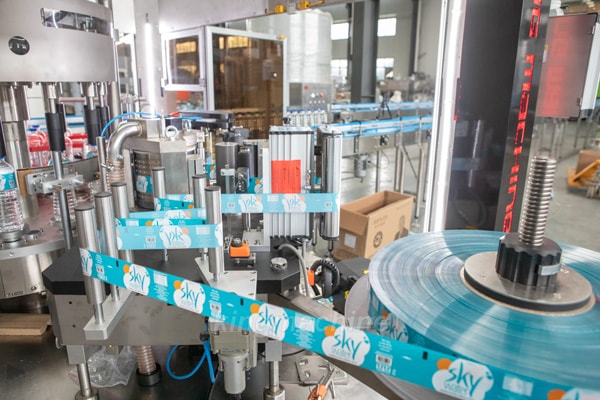

2.When the bottles reach the position of electric eye detection,label sending system starts to send labels and then the high speed cutter will cut the label. It adopts Japan Yaskawa high speed servo motor which can ensure the accuracy and stability of label sending and cutting.
3.The cut labels will be sent to the gluing system which will glue two ends of label. This way of gluing can make min consumption of hot glue.
4.The glued labels will be rotated to the labeling position. During label transition,the bottles are in a rotating condition, so the labels can be applied smoothly and tightly to the bottles.The glued ends of label can be overlapped well. Thus, the labeling process finished.
 |
OPP Hot Melt Glue Labeling Machine
This series of hot melt glue labeling machine can be used for round bottles, square bottles, flat bottles and other special-shaped bottles labeling. (Different products have different models) |
|
Label alignment systemof OPP Hot Melt Glue Labeling Machine Standard German import label alignment system, to ensure that the label is always in the same position, improve labeling accuracy |
 |
 |
Label station of OPP Hot Melt Glue Labeling Machine label station forward and backward movement, up and down, tilt Angle, can be multi-dimensional adjustment. (The whole station adopts Krons structure, stable and reliable operation, convenient operation, no jitter phenomenon in high-speed operation, to ensure the accuracy of labeling) |
Parameters of OPP labelling machine-linear type
| Name | Rotary Opp Hot Melt Bottle Labeling Machine |
| Voltage | Three-phase 380V 50 Hz 8000W |
| Labeling precision: | ±1mm |
| Power | 8KW |
| Available bottle dimension | Diameter:40-105mm, height=80-350MM |
| Gluing way | Roll painting(about 10mm, both label head and tail) |
| Capacity | 9000-36000 bottles per hour (500ml bottle) |
| Glue Consumption | l kg/ 100,000bolttle(label height:50mm) |
| Gluing temperature: | 120~160℃ |
| Compressed Air Pressure | MIN5.0bar MAX8.0bar |
| Consumption of Compressed Air | 0.2M³/minute |
| Machine dimensions: | L=3150,W=1770,H=1800 |
| Overall dimension | 2200Kg |
Detail pictures of OPP labeling machine
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
he labeling machines are also known as labeling systems, labeling equipment, labeling machines, labeler, labeling machinery, labelling machine, labellers, labelling equipment. Many Labelling machines are not only used to dispense or apply labels, but also to print labels. There is a wide range of Labelling machines available in the market, ranging from high–production units that allow for complete automation of the print and apply process to manual devices that provide for simple label dispensing.
