Glass bottle filling machine was used for washing bottle, filling ,plastic cap sealing and aluminium cap sealing in one machine. The whole machine designing is reasonable. The appearance is beautiful and the maintenance is convenient. It adopts Flat type conveying-bottle structure and Glass Bottle Screw to make changing bottle model more convenient, faster, more reliable and easier. The main machine adopts advanced PLC control technology. The key electric elements are adopting international famous products.
Full Automatic Glass Bottle CSD Filling Machine
*We supply complete solution for the glass bottle filling machine CSD filling plant ,including Water treatment system / Automatic depalletizer machine / Washing filling capping machine / High speed Beverage Mixing Machine / Code sprayer / Bottle warmer / Flat conveyor / Automatic labeling machine / Automatic film wrapping machine with carton tray / Automatic Palletizer system
Mechanical level filler for carbonated products in PET bottles, was designed adopting advanced technologies. It has an innovative design and is equipped with special features for both filling and moving the bottles, which guarantee great advantages in terms of performance and operating flexibility. The valve is also able to fill non-carbonated products.
Products that can be processed
– Carbonated mineral water and CSDs.
– Still water.
– Beer.
Output
Fillers with from 20 to 160 valves from 3,900 to 33,000 b/hour on 1.5 litres with CSD (13 °C)

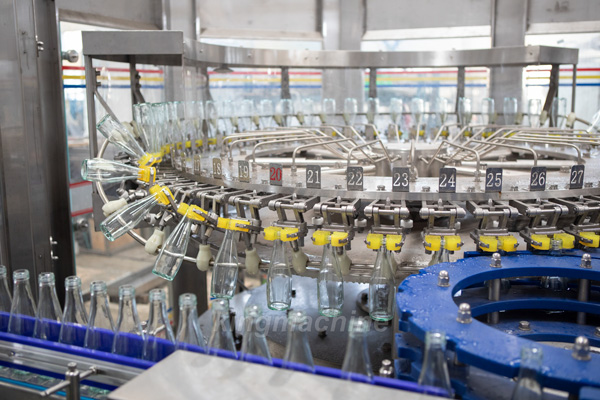

Washing headsThe rotary disk is fully made of SUS304 stainless steel.
|

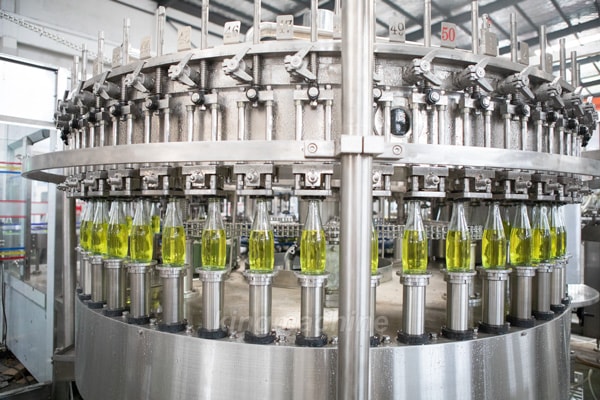

Filling of glass bottle filling machineThe filling machine is equipped with high precision flowmeter aboved each filling valve pipeline.
|

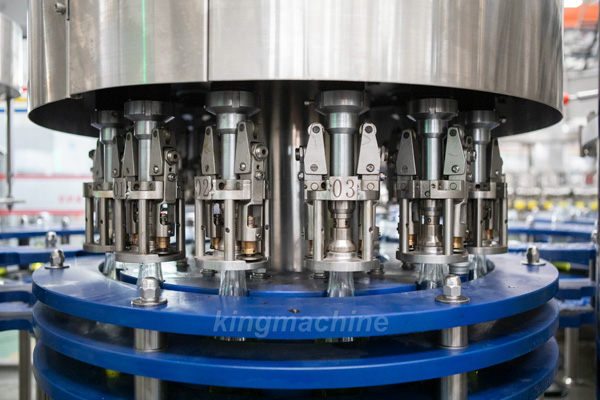

Aluminium Capping partThe capping machine is the highest precision in 3-in-1 unit machine, on the reliability of equipment operation, has enormous influence on the defective rate of the product.Introduced the world’s most advanced Italian AROL capping machine technology, combining with the filling machine production experience improvement, and ask college of Shanghai Jiao Tong university mechanical engineering institute of electrical and mechanical design and automation technology of experts and professors to help design.
|
| Automatic depalletizer machine
|
 Bottle warmer(1) Production Capacity: 20000b/h Diameter of cans: Φ30-60mm, Height: 90-260mm (2)Time of spraying in first temperature zone:4 min (3)Time of spraying in second temperature zone:4 min (4)Time of spraying in third temperature zone:4 min (5)Time of spraying in forth temperature zone:4 min (6)Time of spraying in fifth temperature zone:4 min (7)Speed of conveyor: 590~2950mm/min (8)Power: 12kw (9)Overall dimension: 10000×2100×1400mm |

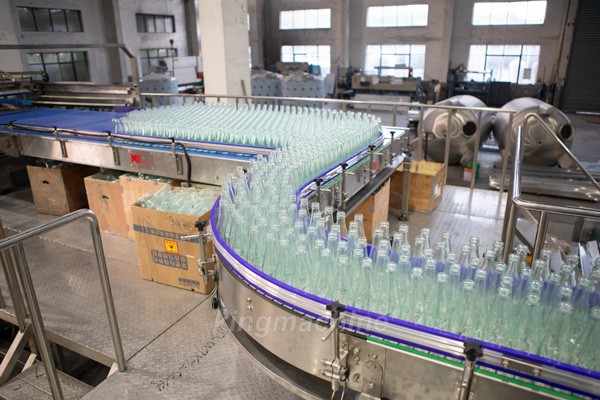

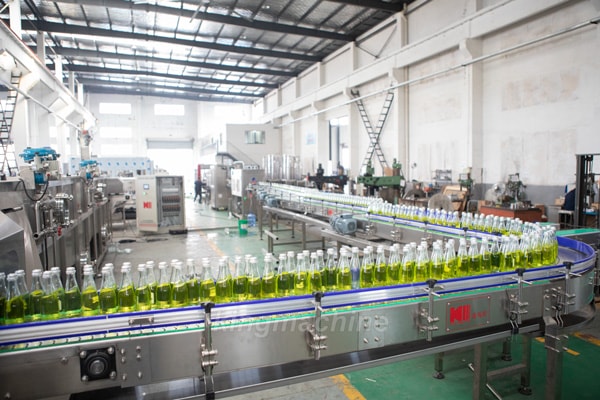

Flat conveyor
|
 Drying machine
This machine installed after the filling machine, In order to dry the bottles which outside with some water drop, this machine is used to remove the water outside the bottle surface, the blowing capacity can be adjusted through the button. |
Automatic labeling machine1.Hot melt glue labeling machine is widely used for different material of container . |
 PE film packaging machineAutomatic PE film heat shrink wrapping machine is suitable for wrapping of such products as pop top, mineral water , bottles. beer, drinks etc. Working with PE film shrink tunnel to pack the goods perfectly , the whole production process adopts the Germany advanced technics, and the main parts are imported from international famous companies. It consists of seven actuating motor, through cooperation with 7 actuating motor to form the product packed with plastic film and several bottles as a group out from the hot shrinking packing machine. |

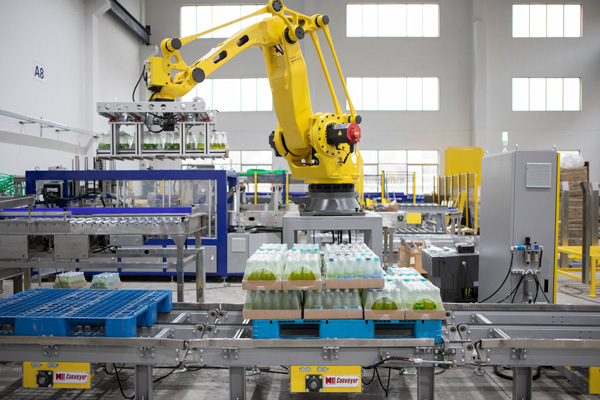

Automatic robot palletizer system
|
Capacity:350-400 bottles/min
