Automatic Shrink Sleeve Labeling Machine: the whole machine is waterproof as well as rustless. Adjustable cutter head: uniquely cyclotron cut-off, double sided cutting edge with a long service life. Single positioning centre guide pillar: a more stable for label delivery. Synchronous bottle divider: a more stable transmission for bottle. Bottom set of label brush:a more precision for casting label. Label-controlling electric-eye shelf:
1.Automatic Pvc Bottle labeling machine, packing machine
Function:
All-cover type stainless steel host machine: The whole machine is waterproof as well as rustless.
Adjustable cutter head: Uniquely cyclotron cut-off, double sided cutting edge with a long service life.
Single positioning centre guide pillar: A more stable for label delivery.
Synchronous bottle divider: A more stable transmission for bottle.
Bottom set of label brush: A more precision for casting label.
Label-controlling electric-eye shelf: Unique combination of tail and electric-eye to improve the precision for cutting off The membrane materials.
Push-button control cabinet: A more humanized operation.
Independent feeding material shelf: The position of the material shelf is optional at will.
Electrical Appliance Configuration Specification:
It adopts PLC programmable controller, imported servo motor, servo driver, frequency converter and transducer; Besides, it dopts The positioning module to ensure the casting label precise, rapid and stable.
Applicable Bottle Types:
Various kinds of bottle types, for example: Round bottle, square bottle, flat bottle, curved bottle and cup-shaped, etc.
Technical parameter of Bottle Labeling machine :
| Model | TBJ–150 | TBJ-250 | TBJ-350 | TBJ-3450 |
| Host size | 2100L*850W*2000H | 2100L*850W*2000H | 2100L*1100W*2200H | 2500L*1200W*2200H |
| Production speed | 150B~170B | 200B~220B | 300B~350B | 450B~500B |
| Power Supply | 1ø/220V, 3ø/220V | 1ø/220V, 3ø/220V | 1ø/220V, 3ø/220V | 1ø/220V, 3ø/220V |
| Host Power | 2KW | 2KW | 2KW | 6KW |
| Framework material | stainless steel | stainless steel | stainless steel | stainless steel |
| Length of the label | 30mm~260mm | 30mm~260mm | 30mm~180mm | 30mm~180mm |
| Thickness of the label | 0.03mm~0.13mm | 0.03mm~0.13mm | 0.03mm~0.13mm | 0.03mm~0.13mm |
| Diameter of bottles | 28mm~125mm | 28mm~125mm | 28mm~125mm | 28mm~125mm |
| High of bottles | 50mm~280mm | 50mm~280mm | 50mm~280mm | 50mm~280mm |
| shape of bottles | Square, round, oval, flat bottle | Square, round, oval, flat bottle | Square, round, oval, flat bottle | Square, round, oval, flat bottle |
| Contraction furnace power | 13~15KW(Or steam) | 13~15KW(Or steam) | 13~15KW(Or steam) | 13~15KW(Or steam) |
2.Shrink Tunnel for Automatic labeling machine

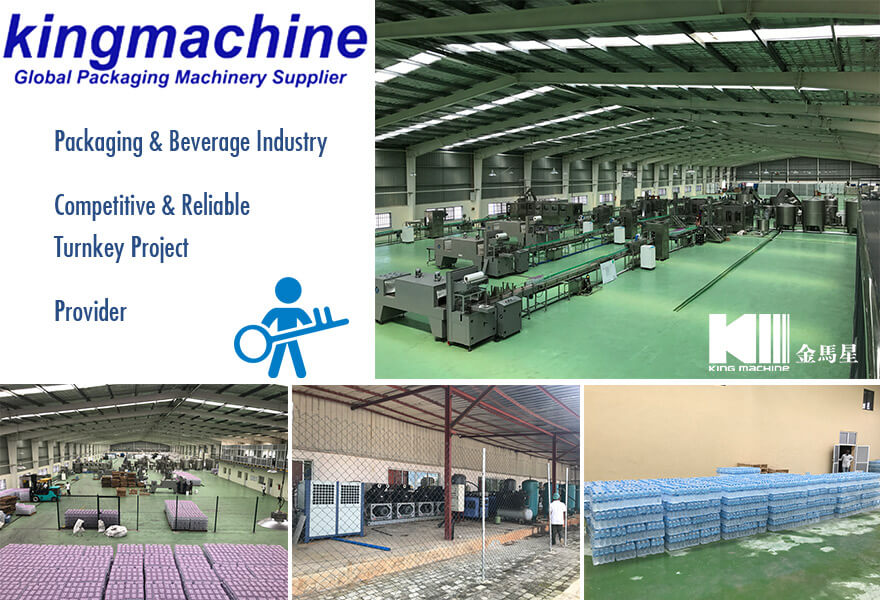

Nearly 15 years, King Machine has provided bottling & packing equipments of liquid solutions to companies all over the world, water bottling line, juice filling line, carbonated soft drinks turnkey project, oil and soda water bottling line and labeling and packing machinery. All your different requiremts King Machine can always offer you the most professional solutions and turnkey project.
Nearly 15 years, King Machine has provided bottling & packing equipments of liquid solutions to companies all over the world, water bottling line, juice filling line, carbonated soft drinks turnkey project, oil and soda water bottling line and labeling and packing machinery. King Machine offers complete filling and packaging solutions for beverage industry and excellent lifelong time service.

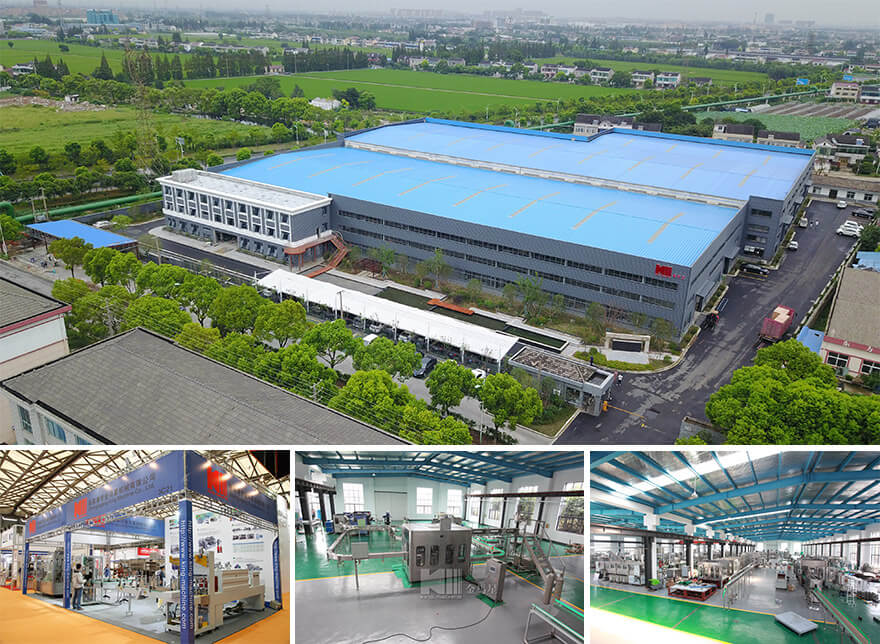

1.Standardized workshop of total 20,000 square meters.
2.Verification Certificates of equipments: ISO9001:2001; CE Certificate, SGS Certificate, BV Certificate, standard organisation of nigeria , cnca certificate, Logo trademark registration, etc.
3.The equipments will be tested and run for 24 hours before leaving the factory, to ensure the smooth working of water pipeline, and pneumatic, electrical and mechnical stability.
4.Sufficient stock of spare parts ensures the timely delivery and supply of spare parts.
5.The engineers are experienced. We can produce different products with different capacity and work out reasonable flow chart as per customers’ requirements to save space.
6.Professional installation team who can speak fluent English can help customers make benefits in a shortest time.
We control the quality of our equipments by manufacturing and machining ourselves. Pay attention to each assembly detail, and our experienced technicians monitor each key point efficiently during assembly, to ensure that the performance and appearance of each product be pefect.
To help our customers build an ideal factory. With efficient cost control, we have found the right balance with our customers: diversified production range, high-class packaging forms. Meanwhile market competitivness has been improved because of the efficient operation mode of equipments.
Q1: Do you have reference project?
A1: We have reference project in most countries,If we get the permission of the customer who has brought the machines from us ,we can tell you their contact imformation,you can go to vist their factory.
And you are always welcome to come to visit our company,and see the machine running in our factory,we can pick you up from the station near our city.
Contact our sales people you can get video of our reference running machine
Q2: Do you have agent and after-service stations?
A2: So far we have agent in Yemen,Nigeria,Dubai,India,Kenya,Dubai welcome to join us!
Q3: Do you provide customized service
A3: We can design the machines according your requirements(materil ,power,filling type,the kinds of the bottles,and so on),at the same time we will give you our professional suggestion,as you know,we have been in this industry for many years.
Q4: What's your guarantee or the warranty of the quality if we buy your machines?
A4: We offer you high quality machines with 1 year guarantee and supply life-long technical support.
Q5: How long time for installation?
A5: According your machines order,we will send one or two engineers to your plant,it will take about 10 days to 25 days.
