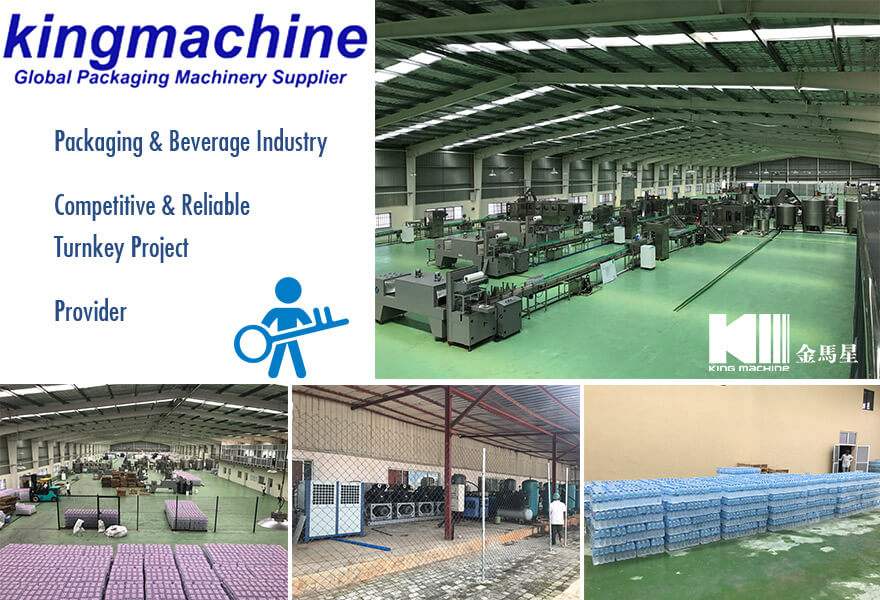

  • Turnkey Project
  • Enginner team
  • Our Customer
  • FAQ

Automatic Energy Drink Bottling Machine Monoblock

Product Description :

1.RXGF washing,filling capping 3in1 machine is mainly used in the juice filling operations.

2.The three functions of bottle rinsing, filling and capping are composed in one body of the machine.

3.The whole process is automatic.The handle of the machine can be freely and conveniently turned to adjust the machine to fill various types of bottles.

4.It is convenient to operate with higher automation because every part of the machine is inspected to run with photo electricity



Inside structure:

Containers and Specifications Drink Bottling Machine
Project Name: Full Automatic Complete Juice(Fruit)Pulp

2000-20000bph Production Line

Hot Filling energy
drinks
Material Shape Filling volume Filling level
(mm)
Neck type
Glass Bottle Square or Round
Bottle
100-2000ml  Distance from bottle neck

According request

As request
Adjustable specifications of the bottle type 【Middle Mould Base】Bottle diameter ≤105mm Bottle Height≤335mm
Customers need to buy additional change-over parts for the different bottles.
If using square bottles, then bottle separating system will be added.
Juice Preparation Fruit , Concentrate, Powder mixing, Pulp size≤15mm …..
Container Label & Control Mode Packaging system Palletizing system


Hot Melt Roll-Fed

PVC Shrink Label

Full Label/ Half Label

Manual / Automatic

Packing system Min, Spec. Manual

Low position gantry palletizer

Robot Palletizer

High position gantry palletizer

Single Arm Palletizer

Manual Palletizer

Manual

Film shrinker

Wrap Around packe

Robert Packing Machine

1*2

2*3

3*4

4*6

3*5

User Ambient Conditions: Temperature:10~40℃;Humidity:No dew
User Electrical Supply Specification Voltage:380V±5%, 3phase; Frequency:50HZ±1%

Mango/orange Aloe Vera Fresh Juice Processing production Line

Mango/orange Aloe Vera Fresh Juice Processing production Line Carrot Mango Fruit Pulp Juice Processing Plant, Juice Production Line, Juice Bottling Machine

Complete line of Aloe Vera Mango Orange Apple Grape Coconut Fruit Processing Concentrated Fresh Pulp Granule Juice Aseptic Hot Filling Blow Molding Labeling Packing Machine

Water Treatment System
Source water tank →Source water pump→ Quartz sand filter→ Active carbon filter→ Ion soften machine→ Fine filter →Reverse Osmosis

→Ozone sterilizer → pure water tank

Juice blending system

Concentrated fruit juice → Syrup melting pot→ Beverage pump → Syrup filter → Blending tank → Beverage pump→Double head filter →Juice Homogenizer → Beverage pump → Vacuum degasser→ Screw pump → Beverage tank→ Beverage pump → Super high temperature sterilizer(UHT) → Heat insulation tank → CIP system

Bottle washing filling and capping  monoblock machinery
2in1:

Air conveyor ---filling part --capping part--light checker --filled bottle conveyor
3in1:

Air conveyor --washing part --filling part --capping part--light checker --filled bottle conveyor

4in1:

Air conveyor --washing part -- fruit filling part ---juice filling machinery---capping part--light checker --filled bottle conveyor

Bottle Inverse Sterilizer Machine

It is mainly used in sterilizing pet bottle mouth and inside surface of caps.In which has not been disinfected by hot tea,fruit juice which having been filled in pet bottle.

Pasteurizer tunnel
This machine can reduce the temperature of hot filling drinks to 36°C-40°C.It is used in carbonated hot tea drinks,juice drinks and litchi juice production line.
Packing system

code printer

PVC sleeve shrinking labeling machine :
OPP labeling machinery

Shrink wrapping packing machine

Carton packing machinery

Preform Injection and bottle blowing mold system
Bottle Blowing Machine
Main automatic blowing machine
high &low pressure compressor
high pressure air storage tank
air filters
air cooling dryer
water chiller
Bottle mould follow the sample to design

Q1: Do you have reference project?
A1: We have reference project in most countries,If we get the permission of the customer who has brought the machines from us ,we can tell you their contact imformation,you can go to vist their factory.
And you are always welcome to come to visit our company,and see the machine running in our factory,we can pick you up from the station near our city.
Contact our sales people you can get video of our reference running machine

Q2: Do you have agent and after-service stations?
A2: So far we have agent in Yemen,Nigeria,Dubai,India,Kenya,Dubai welcome to join us!

Q3: Do you provide customized service
A3: We can design the machines according your requirements(materil ,power,filling type,the kinds of the bottles,and so on),at the same time we will give you our professional suggestion,as you know,we have been in this industry for many years.

Q4: What's your guarantee or the warranty of the quality if we buy your machines?
A4: We offer you high quality machines with 1 year guarantee and supply life-long technical support.

Q5: How long time for installation?

A5: According your machines order,we will send one or two engineers to your plant,it will take about 10 days to 45 days.
